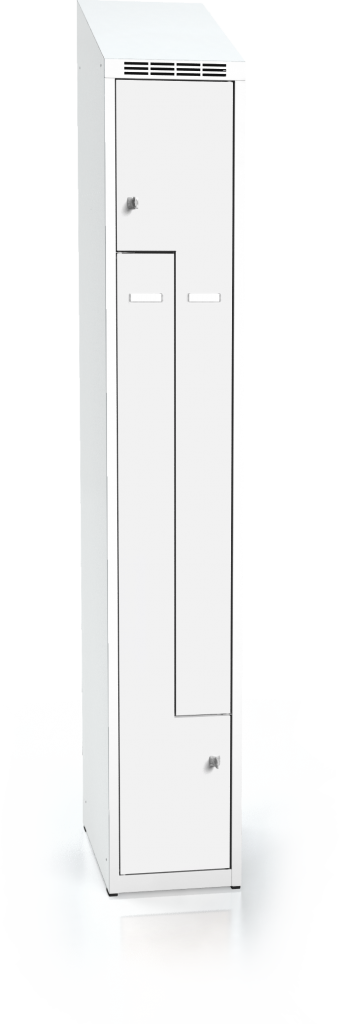

Kleiderschränke mit doppelwandige Tür in Z ALDUR 1 mit abgeschrägten Deckel 1995 x 300 x 500

  • Expertenrat
Waren-Code: R3M 30 1 Z S SD C1 7035 7035

Das Produkt wird in folgenden Varianten angeboten:

Schließsysteme
Türfarbe RAL-Palette KLASIK
Auf Lager
Fragen Sie uns nach einem Projektpreis
Fragen

 Kleiderschränke​, mit doppelwandige Tür in Z mit hoher Beständigkeit mit abgeschrägten Deckel, Sockel: 40 mm hoch, Hutboden, Kleiderstange + Kunststoffhaken. Abgeschrägten Deckel mit der Überhöhung 195 mm und dem Neigungswinkel 21° versehen werden.

Detaillierte Informationen
  • Expertenrat

Detailbeschreibung

All the important constructional items of the third generation of the cloakroom lockers with doors inserted in a frame construction have been completely reworked. Metal parts are made of steel sheets with higher solidity.



Are you considering the idea of placing a parcel box?

WRITE TO US



cloakroom lockers with doors inserted in a frame construction

  The frame construction of the frontal part of the body is newly profiled and provides higher resistance against violent breaking the door into the body and makes a solid support for the safety door bolt. The door construction has been also completely reworked. They are newly furnished with reinforcing elements, they are standardly prepared for installation of opening limiters and damping elements.



The body is furnished with an efficient ventilation system



Ventilation system

The body is furnished with an efficient ventilation system which fulfils with a generous margin demands of DIN 4547 standard. Ventilation slots are cut in a safety section and they are placed in the frontal edge of the upper partition, in locker ́s bottom, in locker ́s back wall and on surface of all shelves.

  Right function of ventilation please follow the installation instruction of the producer



Cylindrical lock C1, 4000 combinations, a master key option.



Locking systems

● Cylindrical lock C1, 4000 combinations, a master key option.

● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.

Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.

Extra charge equipment:

○ Coin deposit lock
○ Code mechanical lock
○ Code electronic lock
○ Online electronic systems

○ Chip electronic lock





Surface treatment

The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.




"

Produktlinie ALDUR 1 Sicherheitsklasse C

  • Empfohlene Ausführung für Schulen.
  • Verstärkte Konstruktion der Türen und Korpus aus Stahlblech 0,8 mm.
  • Doppelmanteltür mit hoher Beständigkeit gegen Verwindungs- und Biegungsbelastung
  • Verstärkung der Konstruktion im Schlossbereich - Schutz gegen das Durchdrehen und Verbiegen des Riegels
  • Schlossriegel mit Haken - Schutz gegen das Ausbrechen der Tür
  • Einhängen der Tür mit massiven Metallzapfen, maximaler Öffnungswinkel der Tür 100°
  • Handtuchhaken im Türmantel
  • Ablagefach mit der Flächentragfähigkeit 30 kg
  • Kleiderstange mit der Tragfähigkeit 10 kg
  • In jedem Abteil 3 Kunststoffhaken mit der Tragfähigkeit 4 kg
  • Montageöffnungen in den Gestellseitenwänden für gegenseitige Verbindung in Reihen
  • Montageöffnungen in der Gestellrückwand
  • Montageöffnungen im Boden für das Anschrauben an die Vorbankkonstruktion
  • Öffnungswinkelbegrenzer der Tür
  • Vorbereitung für die nachträgliche Montage eines Fachbodens im unteren Gestellbereich
  • Vorbereitung für die nachträgliche Montage der Füße bzw. des Sockels

Technische Spezifikation

Garderobenschränke
Produktlinie 4) Aldur 1 - Verstärkte Tür
Schrankhöhe (mm) 1995
Abteilungsbreite (mm) 300
Anzahl der Abteilungen (Spalten) 1
Anzahl und Anordnung der Türen in der Abteilung 2x (Z-Form)
Interne Anordnung 1) S - Regal oben, Kleiderstange und Haken
Obere Struktur 2) schräge Deckel
Unterkonstruktion 1) Sockel 40 mm

Fragen R3M 30 1 Z S SD

*
*
*
*
